TEER & Impedance Measurement for Organ-on-Chip, Cell-Based Assays, Biosensors and MPS

TEER stands for transepithelial or transendothelial electrical resistance. It is used to assess the integrity of barrier-forming cell layers, such as epithelial or endothelial tissues. In organ-on-chip and microphysiological systems, TEER can provide continuous, non-invasive insight into how a barrier develops, matures, responds to compounds, becomes disrupted, or recovers over time.

Compared with endpoint staining or permeability assays, TEER allows researchers to monitor barrier function while the culture remains intact. In chip-based systems, however, the measured value depends strongly on electrode layout, channel geometry, medium conductivity, temperature, and the overall measurement architecture. Reliable organ-on-chip TEER measurement is therefore not only a biological assay question, but also an instrumentation and integration challenge.

TEER is usually reported as a barrier-integrity value, while electrical impedance spectroscopy measures the frequency-dependent electrical behavior of the full system: cells, medium, electrodes, membrane or substrate, chip geometry, and measurement setup.

In simple workflows, TEER may appear as a single resistance-like number. In advanced cell-based assays and organ-on-chip platforms, impedance spectroscopy can provide a richer basis for this value by measuring across multiple frequencies. This can help distinguish biological changes from setup-related effects such as electrode polarization, medium resistance, or geometry-dependent signal contributions.

In practice, TEER can be one output derived from a broader impedance measurement architecture.

Single-frequency TEER measurement can be suitable for simple or highly standardized setups, but organ-on-chip systems are often more complex. Microfluidic geometries, small volumes, integrated electrodes, low absolute resistance values, membranes, substrates, and electrode polarization can all influence the measured result.

A single measurement point may not provide enough information to separate a true biological barrier change from a setup-related effect. Frequency-swept impedance measurements can provide a more complete view of the system and support more robust interpretation, especially when the readout needs to become reproducible, scalable, automated, or product-ready.

In impedance-based TEER workflows, the system measures how the sample responds electrically across one or more frequencies. The measured impedance contains contributions from the cell layer, culture medium, electrodes, membrane or substrate, chip geometry, cables, connectors, and the measurement setup itself.

Depending on the platform, TEER may be extracted by selecting suitable frequency regions, applying blank or baseline corrections, or using model-based interpretation such as equivalent circuit approaches. In mature products, users may only see a TEER value or barrier-integrity metric, while the underlying impedance data processing remains part of the measurement architecture.

The goal is not just to produce a number, but to derive a meaningful and reproducible barrier-related parameter from the electrical behavior of the full system.

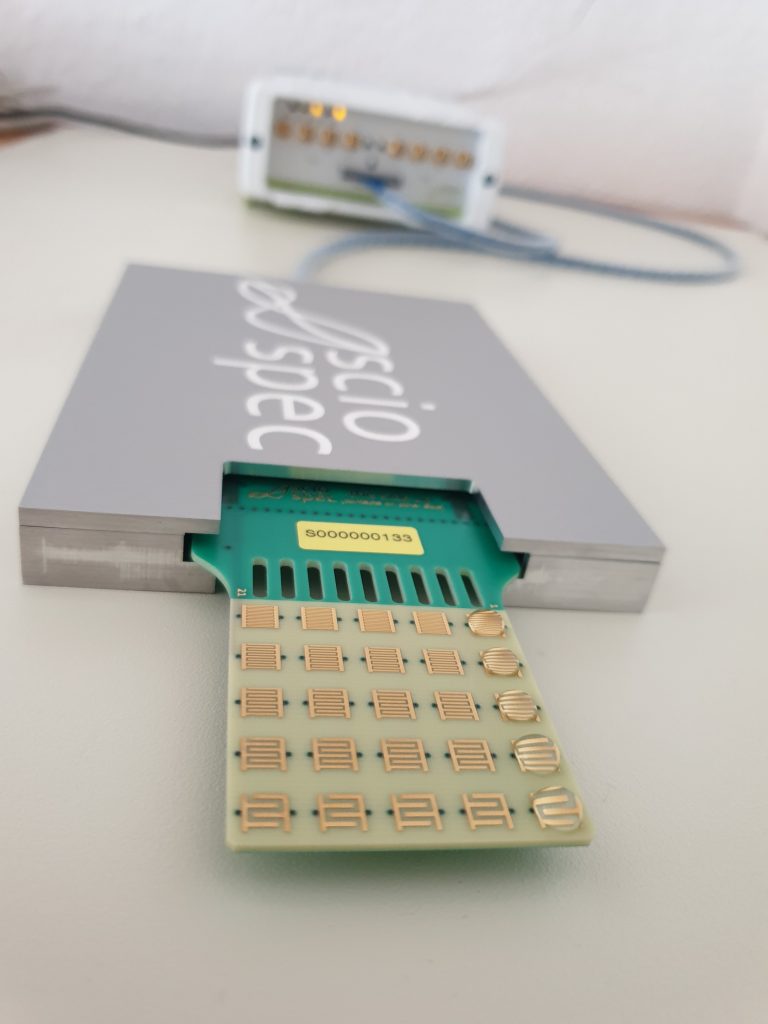

TEER measurement can be implemented with different electrode configurations, including external electrodes, integrated planar electrodes, opposing electrode pairs, and four-electrode or tetrapolar arrangements. The best configuration depends on the chip geometry, membrane or substrate structure, fluidic layout, required sensitivity, and intended workflow.

In organ-on-chip systems, electrode design is especially important because current paths are shaped by the microfluidic channel, culture medium, electrode placement, and biological layer. Poor electrode positioning can lead to values that are difficult to interpret or compare. For integrated platforms, the electrode concept should therefore be considered early in the chip and readout architecture, not added as an afterthought.

All of these factors influence the electrical path through the system. Electrode placement determines which region of the model is actually measured. Chip geometry affects current distribution. Medium conductivity changes the baseline response. Temperature can influence both cell behavior and the electrical properties of the medium. Membranes, substrates, connectors, cables, and electrode interfaces can add further effects.

This is why organ-on-chip TEER and impedance readouts should be treated as measurement-architecture questions, not simply as instrument-selection questions. Reliable data depends on designing the readout around the biological model, chip format, workflow, and operating conditions.

There is no universal frequency range that fits every organ-on-chip or cell-based assay. The required range depends on the tissue type, electrode geometry, medium conductivity, expected TEER level, electrode interface, and whether the goal is a simple barrier metric or a more detailed impedance spectrum.

For some applications, a narrow frequency range may be sufficient. For others, especially miniaturized or low-TEER systems, a broader frequency sweep can help separate cell-layer effects from medium, electrode, and setup contributions. The important question is not only “which frequency should be used?”, but which frequency strategy produces a stable, interpretable, and reproducible readout for the specific platform.

TEER is a powerful readout for barrier integrity, but it does not explain every biological mechanism behind a change. A lower TEER value may indicate barrier disruption, but it does not automatically reveal whether the cause is tight-junction remodeling, cell death, morphology changes, compound toxicity, inflammation, or another process.

TEER also does not directly measure molecular transport selectivity. For many assays, it is most valuable when combined with impedance spectra, electrochemical sensors, imaging, permeability assays, electrophysiology, or endpoint analysis. The right approach depends on the biological question and the decision the data needs to support.

The right readout depends on what the system needs to tell you. TEER and impedance-based barrier monitoring are useful for epithelial and endothelial models. Impedance spectroscopy can track changes linked to cell state, adhesion, morphology, tissue maturation, and dynamic responses. Electrochemical methods are relevant for biosensors measuring pH, oxygen, metabolites, redox-active compounds, or other chemical signals.

Electrophysiology and stimulation are important for excitable models such as cardiac, neuronal, or muscular systems. Electrical impedance tomography or spatial impedance approaches can add distributed information where location matters.

The best architecture starts with the biological or sensor question, not with a fixed instrument category.

TEER focuses on barrier integrity across a cell layer, typically in epithelial or endothelial models. It is especially relevant when cells form a barrier between two compartments, such as in gut, lung, kidney, vascular, or blood-brain-barrier models.

Electrical impedance spectroscopy measures frequency-dependent electrical behavior and can be used more broadly. It may support TEER extraction, but it can also provide information about cell coverage, morphology, adhesion, tissue state, electrode interfaces, or sensor behavior.

ECIS, or electric cell-substrate impedance sensing, is another impedance-based method typically used to monitor adherent cells on planar electrodes. It is related, but not identical to TEER measurement in membrane-based or microfluidic organ-on-chip systems. The right method depends on the biological model, electrode configuration, and required interpretation.

Yes, provided the measurement architecture is designed for it. Combining multiple readouts is not simply a matter of adding more methods. Timing, electrode usage, signal ranges, stimulation patterns, synchronization, software control, and data handling all need to work together.

In some platforms, TEER and impedance may provide barrier and tissue-state information, while electrochemical sensors track microenvironmental signals and electrophysiology captures dynamic activity. Sciospec’s platform approach is built around combining electrical measurement modalities into application-specific architectures rather than treating each readout as an isolated add-on.

The goal should be a coherent readout concept, not just a collection of separate measurements.

Scaling starts by moving from a single proof-of-signal setup to a measurement architecture that supports the intended workflow. That may involve multiplexing, semi-parallel or parallel acquisition, synchronized measurements, adapted connectors, compact hardware, software automation, or custom interfaces for plates, chips, or sensor arrays.

The challenge is not only to add more measurement points. The goal is to increase throughput while preserving data quality, usability, and control over measurement conditions. A good scaling path allows early feasibility work to evolve toward multichannel prototypes, automated workflows, or OEM-ready systems.

In a multiplexed architecture, one or more measurement channels are switched between multiple electrodes, sensors, or wells. This can be efficient and cost-effective, but measurements occur sequentially.

In a parallel architecture, multiple channels are measured at the same time. This improves time resolution and throughput, but usually requires more measurement hardware.

Semi-parallel architectures combine both principles: several channels measure simultaneously while switching expands the total number of ports. The right choice depends on the assay’s required speed, channel count, signal quality, cost, and workflow. This trade-off is central when moving from lab feasibility to scalable bioanalytical systems.

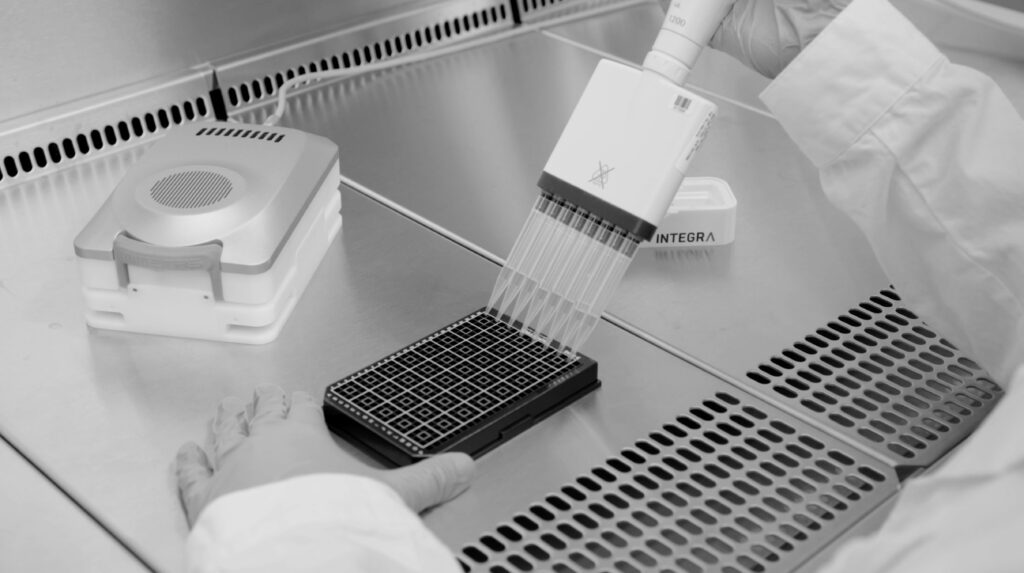

Automated and incubator-compatible workflows require more than a working measurement principle. The hardware must fit the physical environment, tolerate relevant operating conditions, minimize cable and handling complexity, and integrate with the workflow around the assay.

Software control, APIs, data handling, timing, repeatability, and user interaction become just as important as the measurement circuit itself. For long-term cell-based assays, the system must also avoid unnecessary disturbance of the culture. A suitable readout should become part of the workflow, not a manual exception around it.

A feasibility setup usually starts with the simplest practical configuration: an instrument, adapter, test fixture, or custom connection that proves the readout can capture the relevant biological or sensor response.

If the value is confirmed, the same measurement concept can migrate toward more integrated architectures: multichannel electronics, multiplexing or parallelization, custom firmware, software interfaces, compact hardware, and eventually embedded OEM modules or partner-branded systems.

This staged approach reduces risk because the final architecture grows from validated measurement insight rather than from assumptions made too early.

Electrical readouts can support reproducibility when the measurement conditions are controlled, documented, and matched to the biological model. This includes electrode configuration, chip geometry, medium, temperature, timing, blank correction, frequency range, data processing, and workflow handling.

For MPS and organ-on-chip platforms, reproducibility is not only a biological question. It also depends on whether the measurement architecture produces comparable outputs across chips, runs, users, and development stages. A well-designed readout can help transform a promising model into a more reliable and interpretable workflow.

New Approach Methodologies aim to provide more human-relevant, non-animal approaches for research and testing. Electrical readouts can support this direction by adding continuous, quantitative, non-invasive functional data to advanced cell models, organ-on-chip platforms, and MPS workflows.

They can help monitor barrier integrity, tissue state, toxicity response, maturation, or dynamic behavior over time. However, the readout alone does not validate a model or replace regulatory qualification. Its value is strongest when it supports a defined biological question, documented workflow, and clear context of use.

Sciospec supports both. For early work, a standard instrument, adapter, or evaluation setup may be the fastest way to test a measurement concept. For mature platforms, Sciospec can provide custom electronics, multichannel architectures, firmware, software interfaces, embedded modules, and partner-branded OEM systems.

Many projects start with a low-risk feasibility setup and evolve only when the readout value is proven. This allows platform developers, biosensor companies, instrument manufacturers, and assay teams to move from first data to scalable product integration without rebuilding precision measurement technology from scratch.
