Impedance Analysis Accessories

Reliable Connections for Every Setup

Accurate impedance measurements depend not only on the core system but also on well-designed accessories. Test fixtures and measurement cable sets are key components that ensure secure connections, simplify experimental setups and maintain stable reliable performance across all applications.

By providing seamless integration and consistent results these accessories form an essential part of any impedance measurement workflow.

Learn More

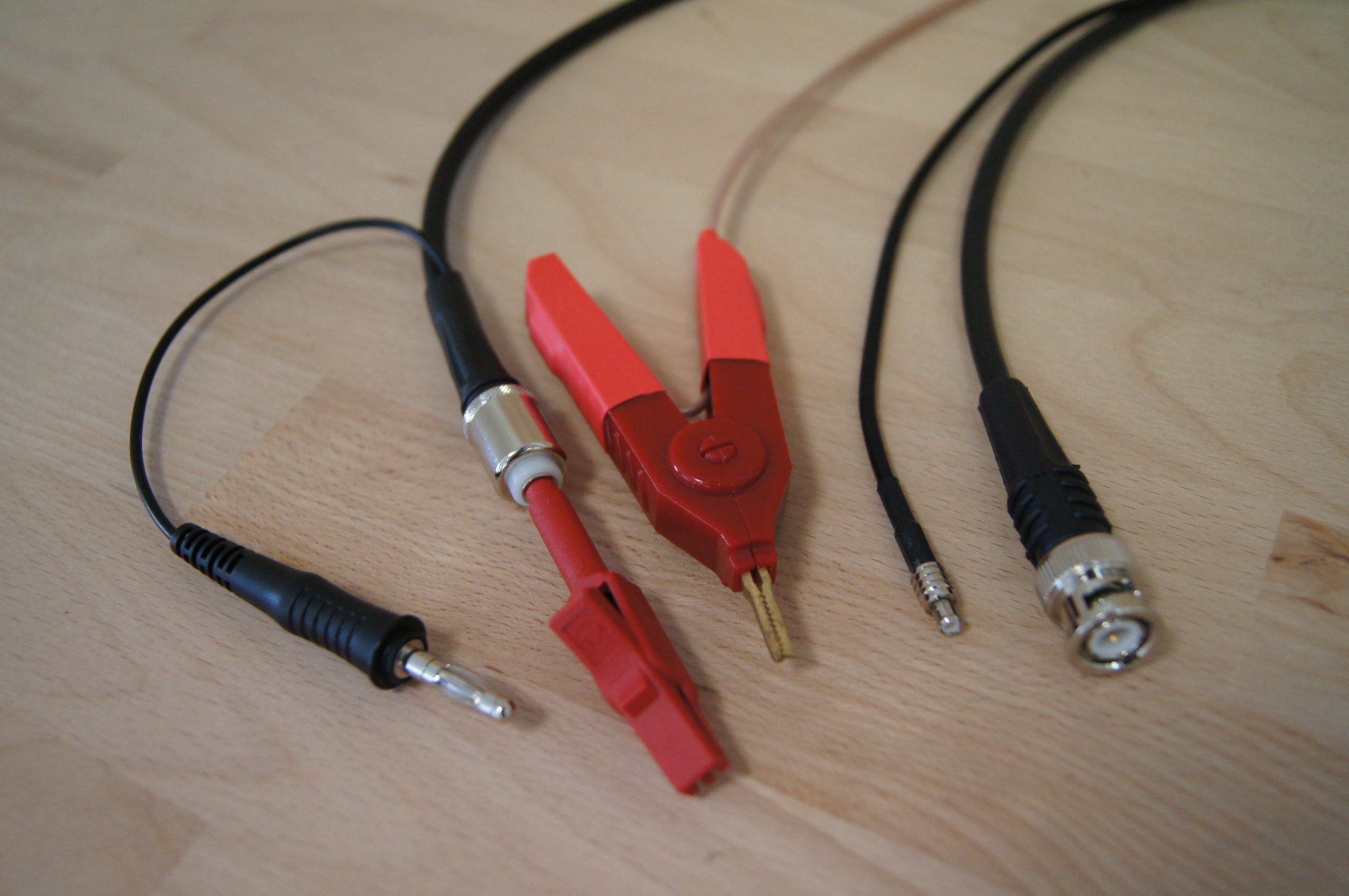

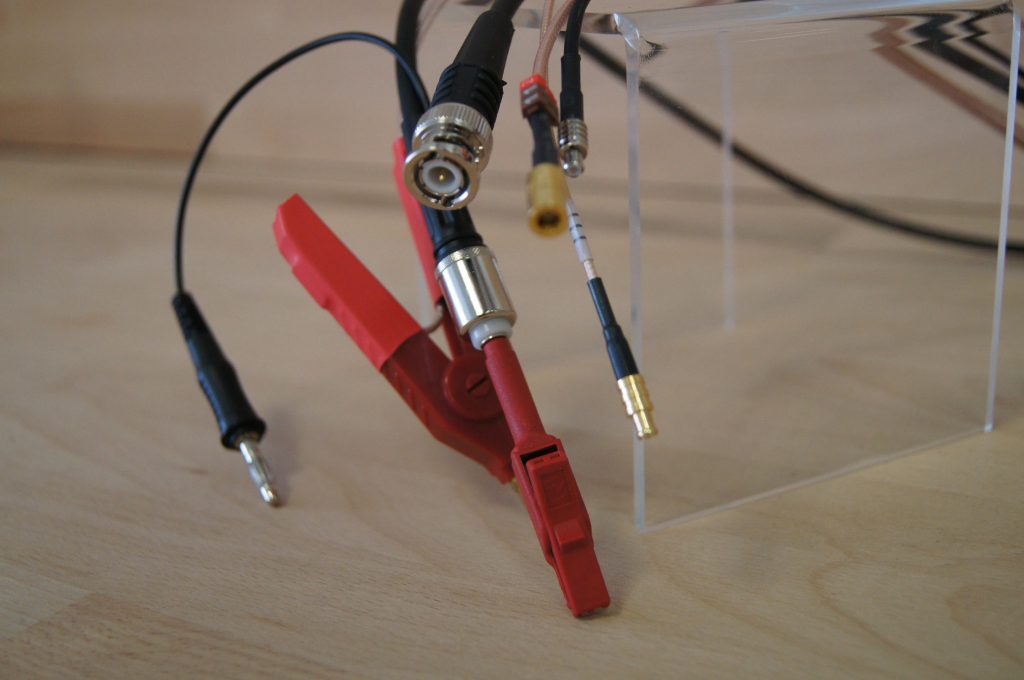

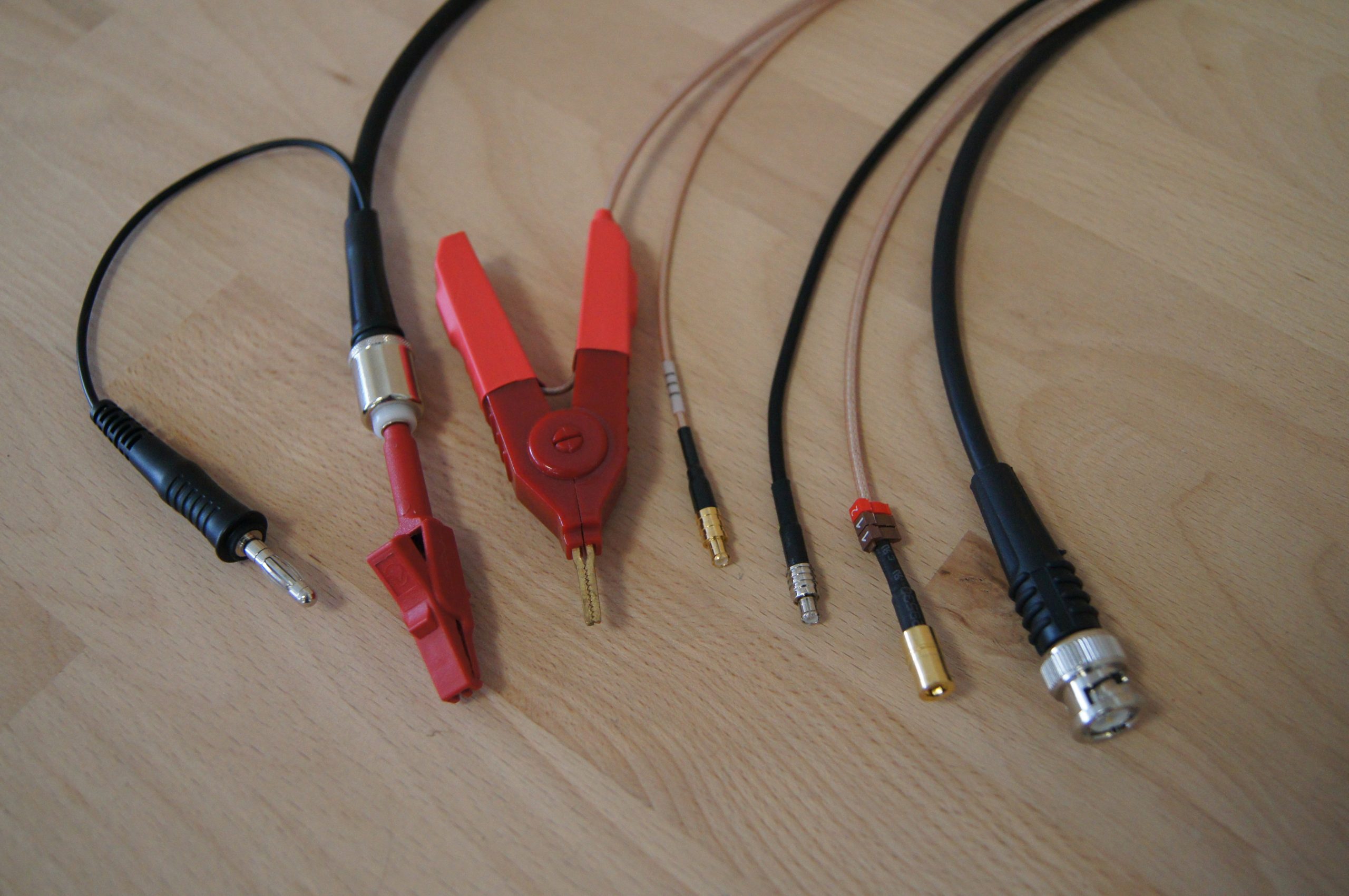

Measurement cable sets

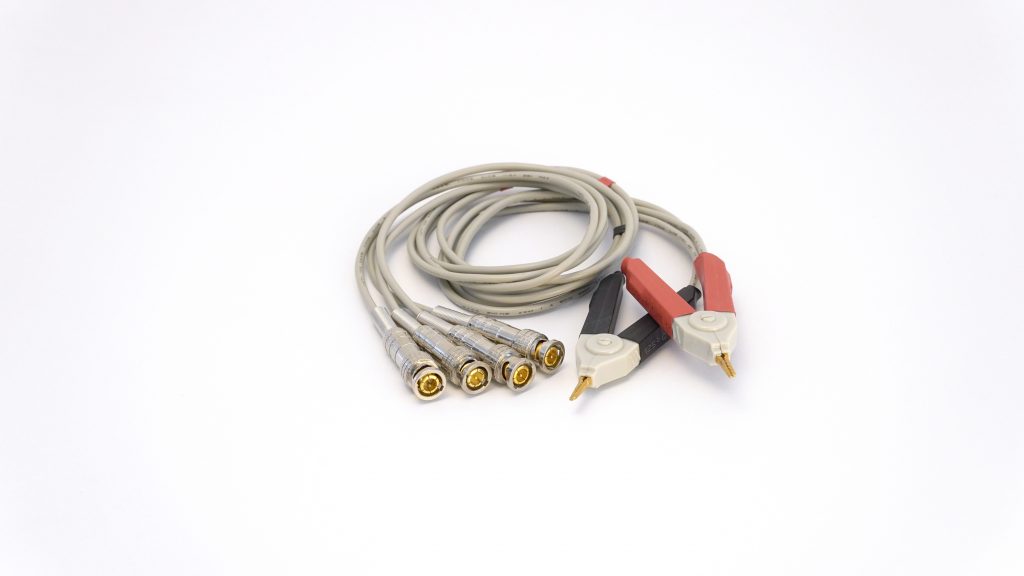

Kelvin clips

  •  For clamp/clip connection
  • Use with ISX-3, LCR-1
  • Cable length: 1 m

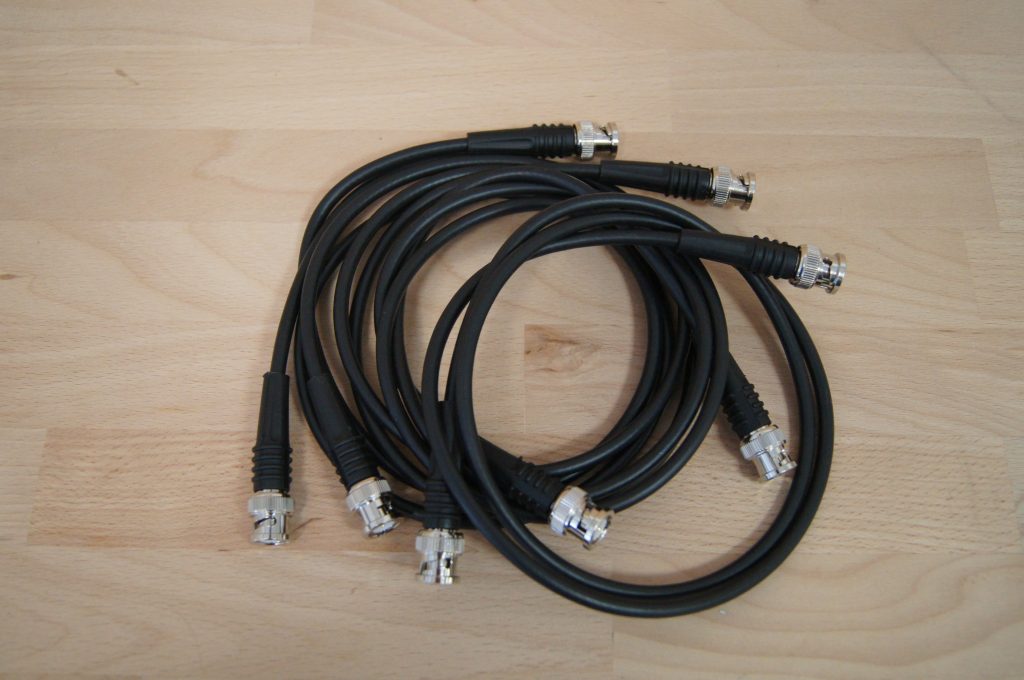

BNC - BNC

  • Use with ISX-3
  • Length: 1 m

BNC - Banana

  • Use with ISX-3
  • Length: 1 m

BNC - MCX

MCX - Banana

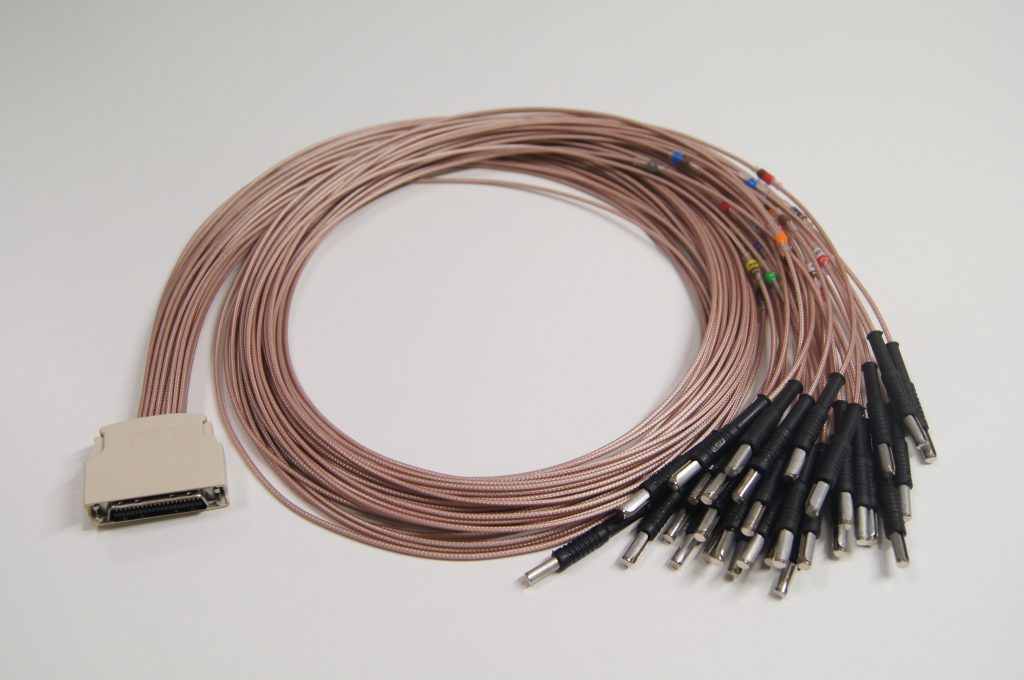

MUX Cable Set

  • MDR – banana plug (+ 32 croco clips)
  • Length: 1 m

Test fixtures

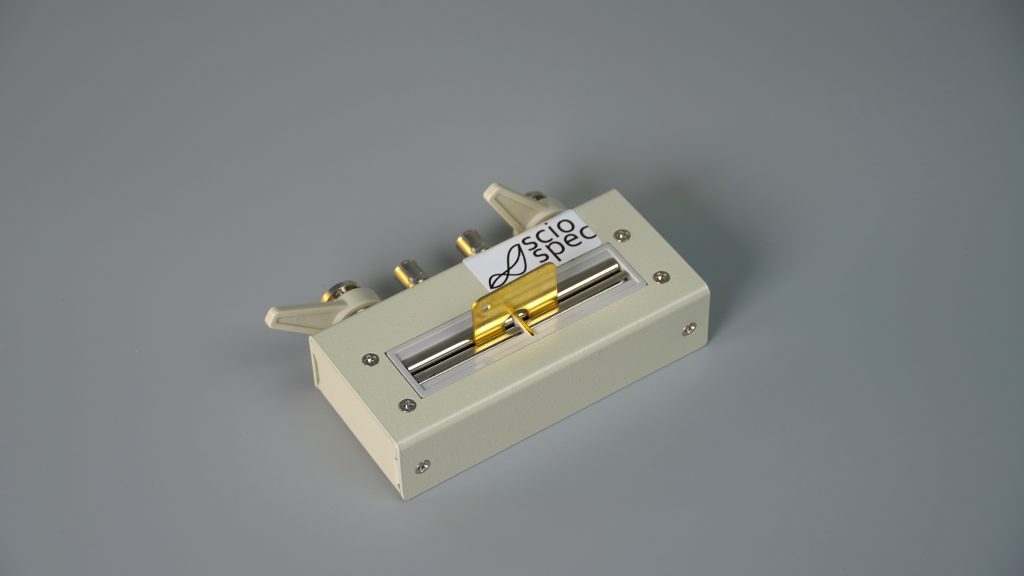

Component Test fixture 10 MHz

  • For easy connection of wired components for measurements up to 10 MHz
  • Short plate included
  • Size: 105 mm x 25 mm x 68 mm (width x height x depth)
  • Weight: ca. 150 g

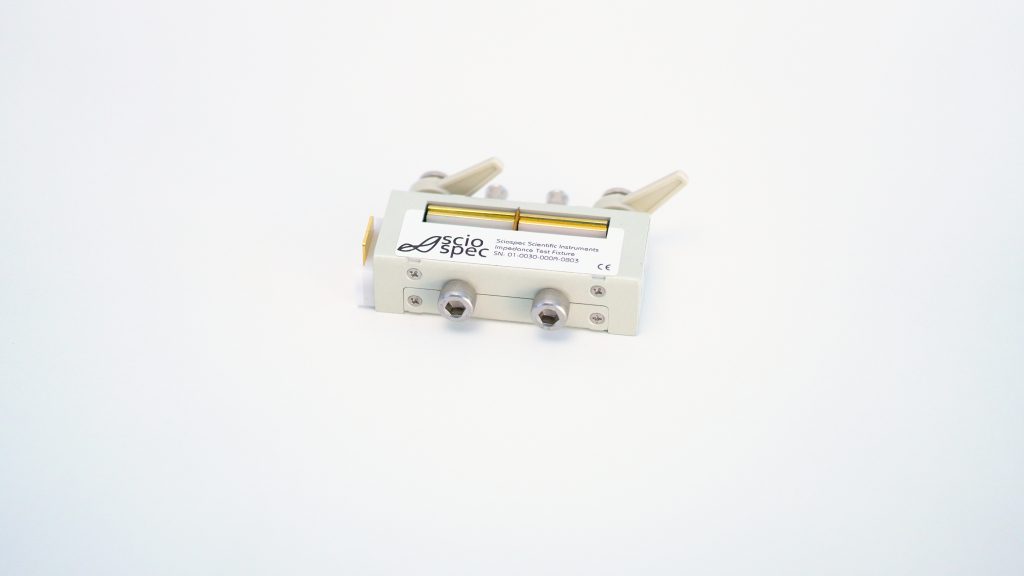

Component Test fixture 30 MHz

  • For easy connection of wired components for measurements up to 30 MHz
  • Short plate included
  • Size: 98 mm x 25 mm x 65 mm (width x height x depth)
  • Weight: ca. 250 g

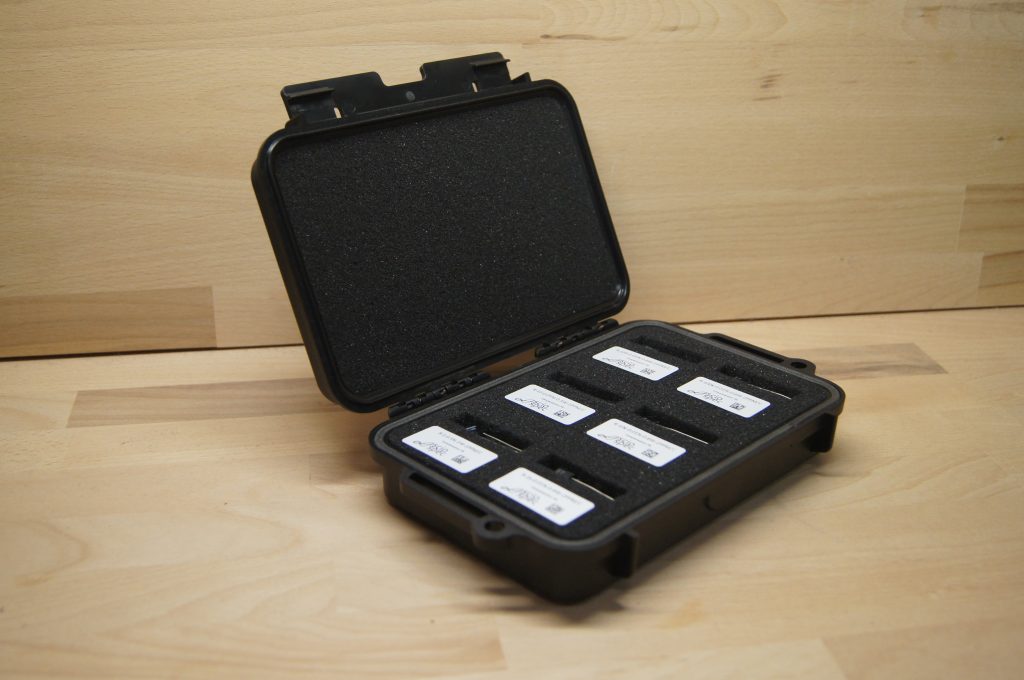

Compensation kit

  • For easy connection of wired components for measurements up to 10 MHz
  • Short plate included
  • Size: 105 mm x 25 mm x 68 mm (width x height x depth)
  • Weight: ca. 150 g

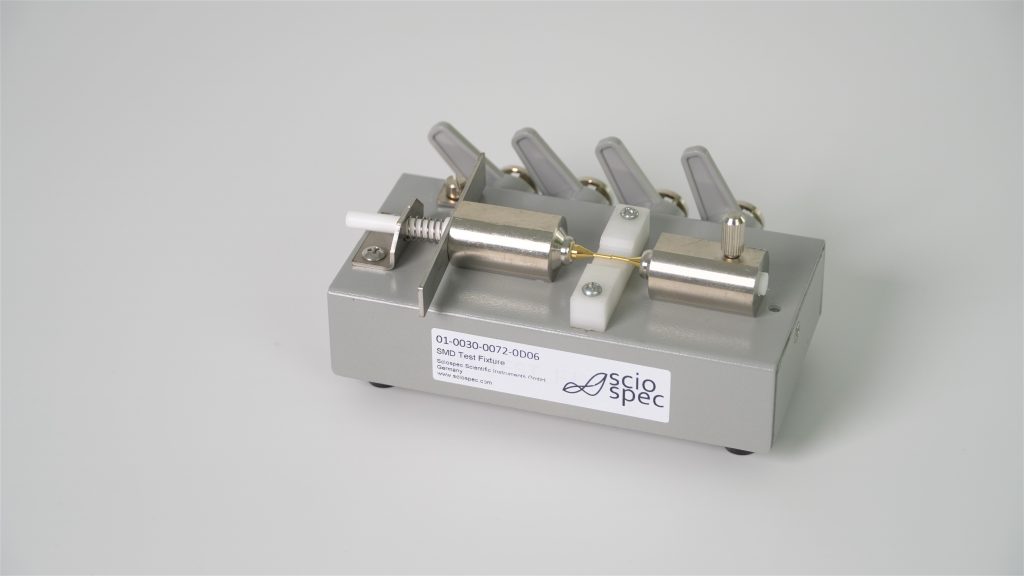

SMD Test fixture

  • For easy connection of wired components for measurements up to 30 MHz
  • Short plate included
  • Size: 98 mm x 25 mm x 65 mm (width x height x depth)
  • Weight: ca. 250 g

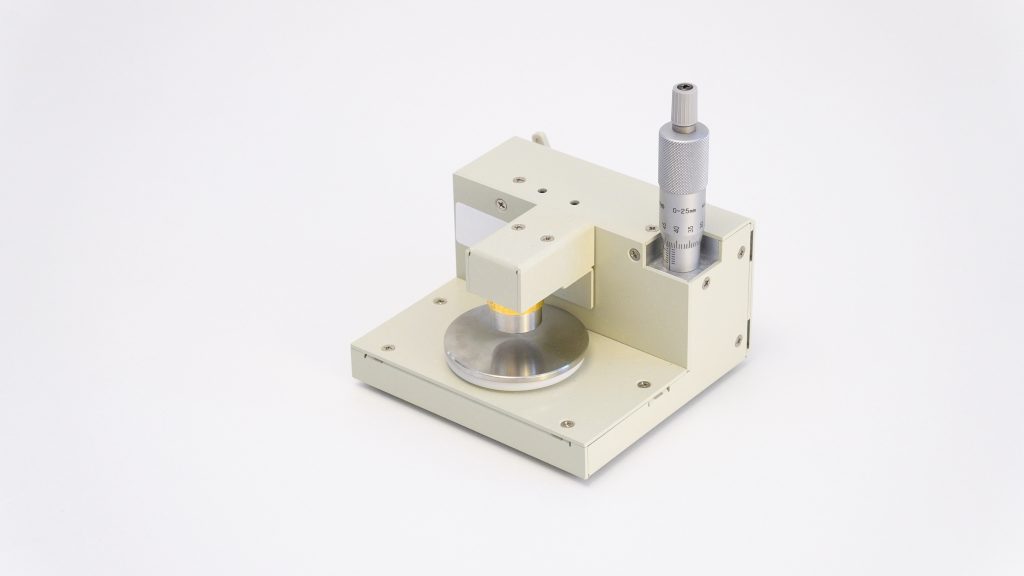

Dielectric Test Fixture

  • For connection of foils and thin films with thickness up to 10 mm
  • Size: 115 mm x 155 mm x 126 mm (width x height x depth)
  • Weight: ca. 850 g

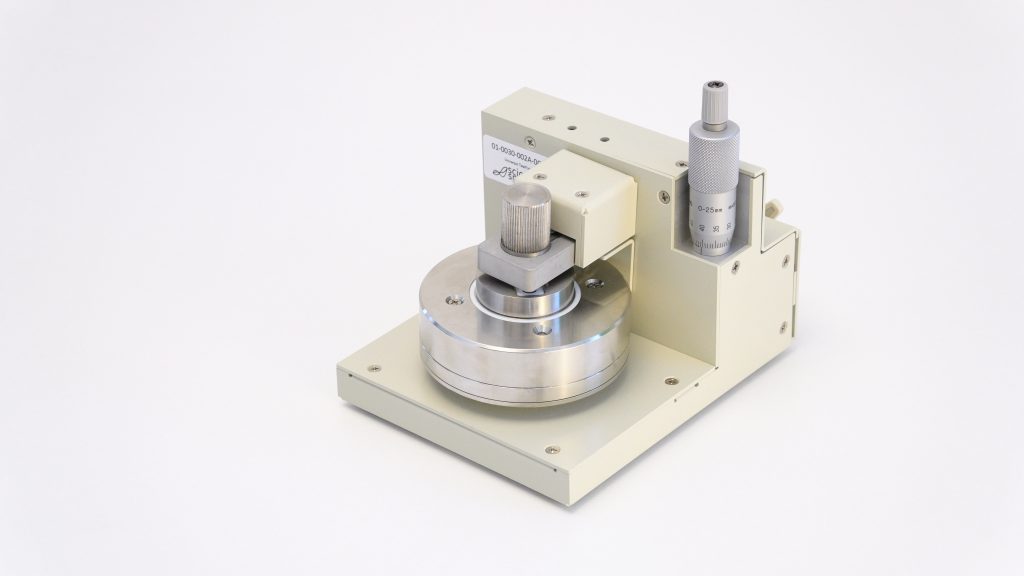

Liquid Test fixture

  • For measuring liquids and solutions
  • Size: 115 mm x 129.5 mm x 159 mm (width x height x depth)
  • Weight: ca. 1700 g
